| Quantity: | |
|---|---|
| Technical Parameters | |||||
| Model | RS70 | RS70 | RS100 | RS100 | |
| Drilling Diameter | 50-90mm | 50-90mm | 90-130mm | 90-130mm | |
| Drilling Depth | ≤15m | ≤15m | ≤25m | ≤25m | |
| Working Pressure | 0.5-0.7Mp | 0.5-0.7Mp | 0.5-1Mp | 0.5-1Mp | |
| Rotation Speed | 110r/m | 110r/m | 110r/m | 110-160r/m | |
| Drilling Pipe | Diameter | 42mm | 42mm | 50-60mm | 50-60mm |
| Length | 1025mm | 1025mm | 1025mm | 1025mm | |
| Size | 1740*260*420mm | 1740*260*420mm | 2280*400*550mm | 2280*380*550mm | |
| Weigh | 250kg | 300kg | 350kg | 400kg | |

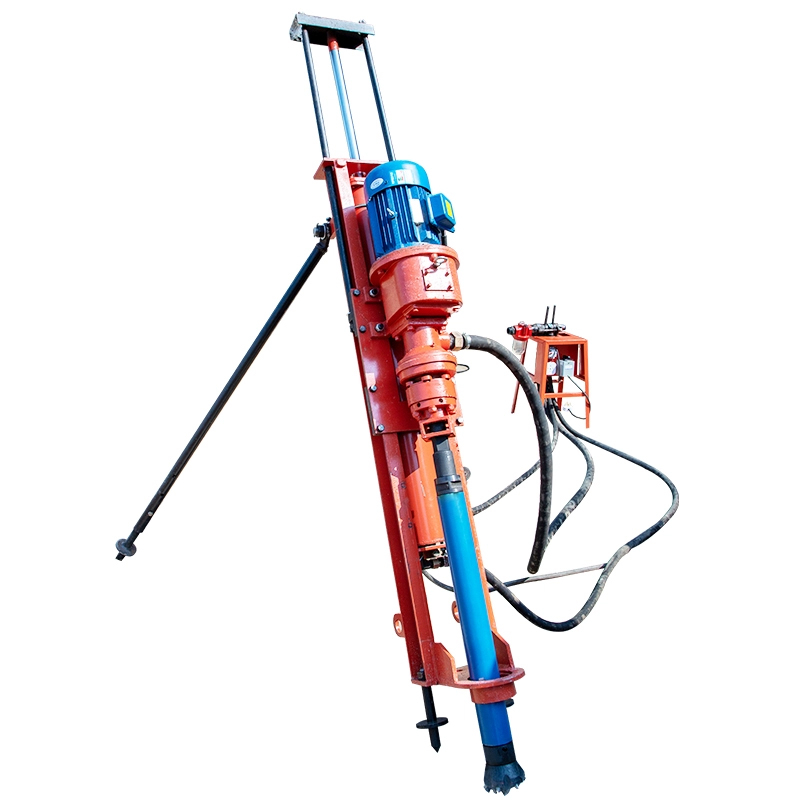

The Ultimate combination of performance and economy. DTH system delivers the highest-possible drilling performance at low running cost. DTH used in variety heavy industry. It is used to drill blasting holes like small to medium mining projects.,

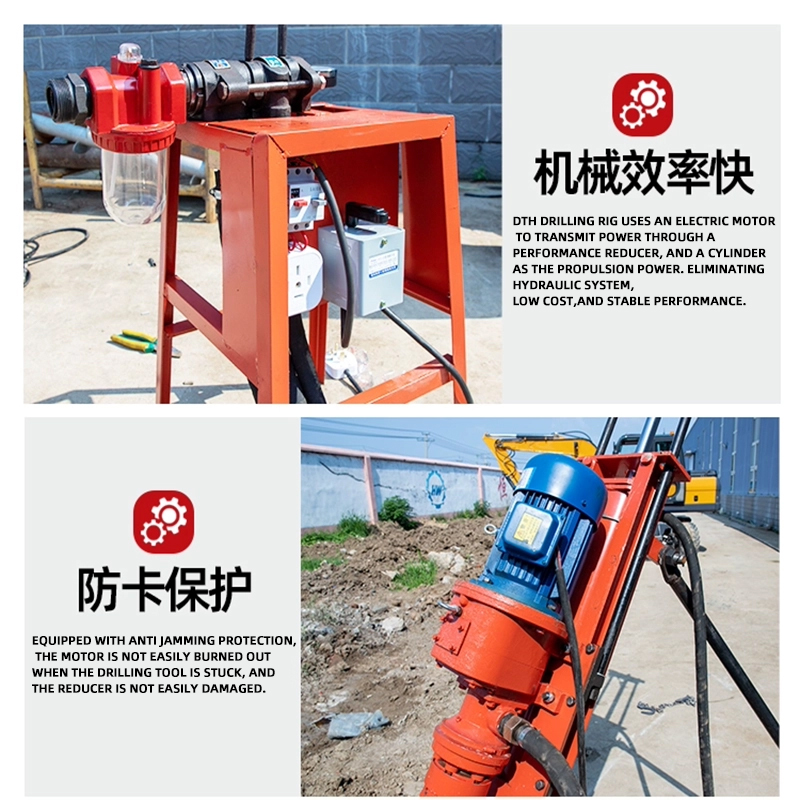

1.Small size, light weight, suitable for large and medium-sized drilling RIGS can not work places, convenient and flexible. DTH drill is powered by electric energy, with low noise and strong power. The drilling speed is 3-8 times of the general drill, the rock hardness DA to 9, the drilling depth is 8-16 meters per hour.
2.Propulsion, rotation and impact are all powered by compressed air, with simple structure, single power and convenient relocation.
3.Centralized control mechanism, easy and quick operation.
4.Unique double muffler, good noise reduction effect, reduce environmental pollution.
| Technical Parameters | |||||
| Model | RS70 | RS70 | RS100 | RS100 | |
| Drilling Diameter | 50-90mm | 50-90mm | 90-130mm | 90-130mm | |
| Drilling Depth | ≤15m | ≤15m | ≤25m | ≤25m | |
| Working Pressure | 0.5-0.7Mp | 0.5-0.7Mp | 0.5-1Mp | 0.5-1Mp | |
| Rotation Speed | 110r/m | 110r/m | 110r/m | 110-160r/m | |
| Drilling Pipe | Diameter | 42mm | 42mm | 50-60mm | 50-60mm |
| Length | 1025mm | 1025mm | 1025mm | 1025mm | |
| Size | 1740*260*420mm | 1740*260*420mm | 2280*400*550mm | 2280*380*550mm | |
| Weigh | 250kg | 300kg | 350kg | 400kg | |
The Ultimate combination of performance and economy. DTH system delivers the highest-possible drilling performance at low running cost. DTH used in variety heavy industry. It is used to drill blasting holes like small to medium mining projects.,
1.Small size, light weight, suitable for large and medium-sized drilling RIGS can not work places, convenient and flexible. DTH drill is powered by electric energy, with low noise and strong power. The drilling speed is 3-8 times of the general drill, the rock hardness DA to 9, the drilling depth is 8-16 meters per hour.
2.Propulsion, rotation and impact are all powered by compressed air, with simple structure, single power and convenient relocation.
3.Centralized control mechanism, easy and quick operation.
4.Unique double muffler, good noise reduction effect, reduce environmental pollution.
