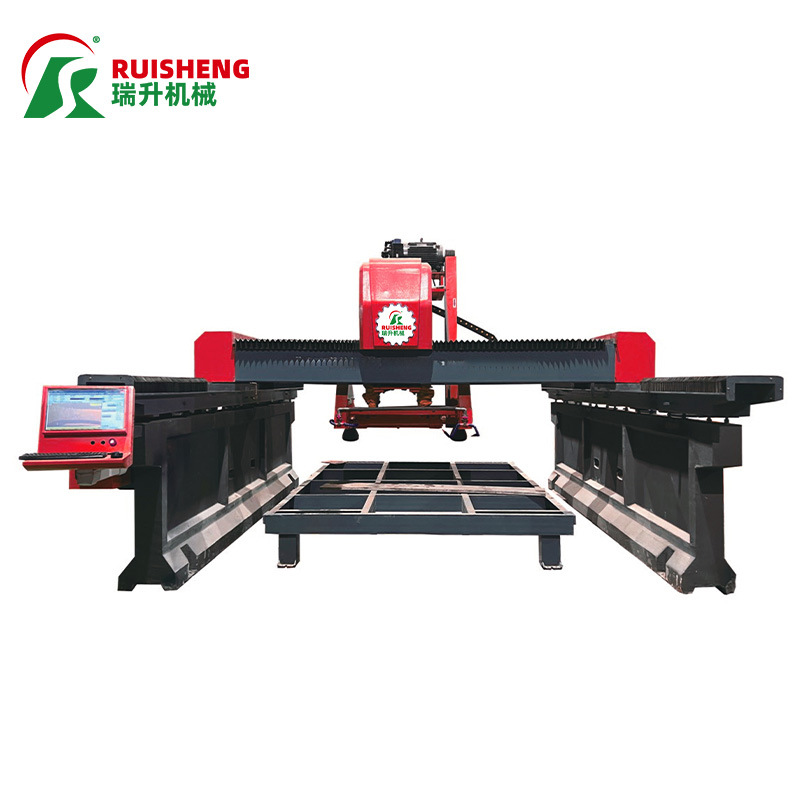

CNC profiling cutting machine for stone marble granite

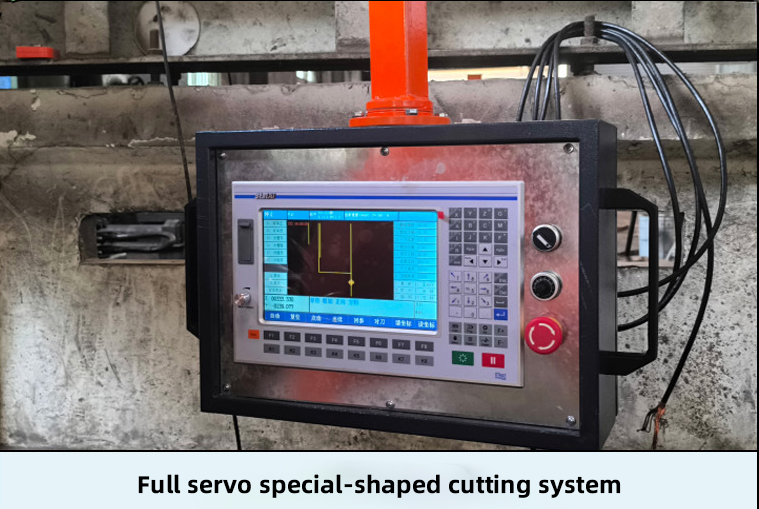

RS-600-2T ues senvo CNC system and Human-machine interaction intertace. with high-level automation, we are cutting one-ster forminneasy operation Full servo motor drive system: fast response and accurate positioning.
Casting crossbeam machine center draa body and side fling system all use superior gray iron with stable vibration absorption cutting and profile are more smooth.
Adopt high precision linear guide to control forward-backward and left-night feeding—precise reducer and finding gear wheel driver, with high walking accuracy. Use a large-diameter chrome-plated guide pilar lifting system, driven by a planetary reducer and ball screw, with low running resistance and long service life.

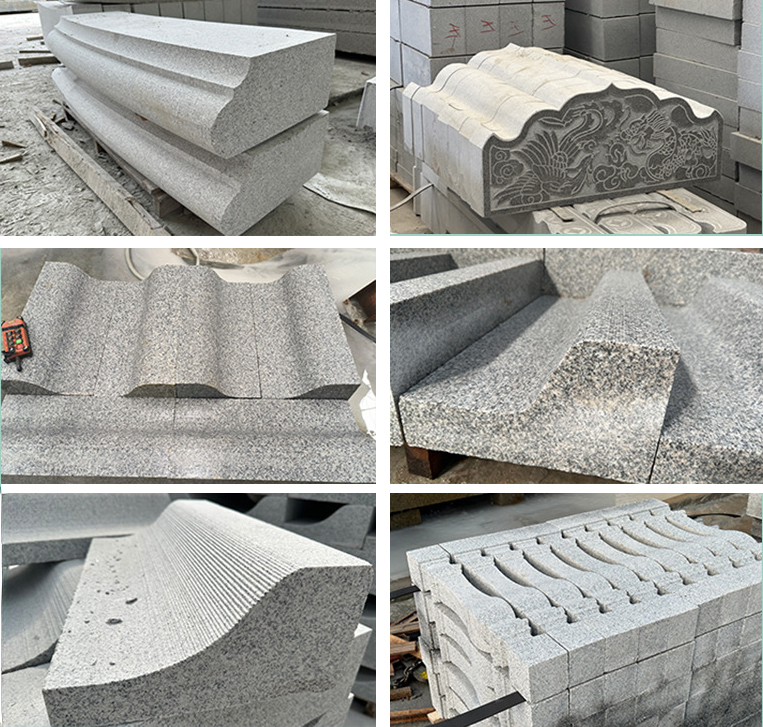

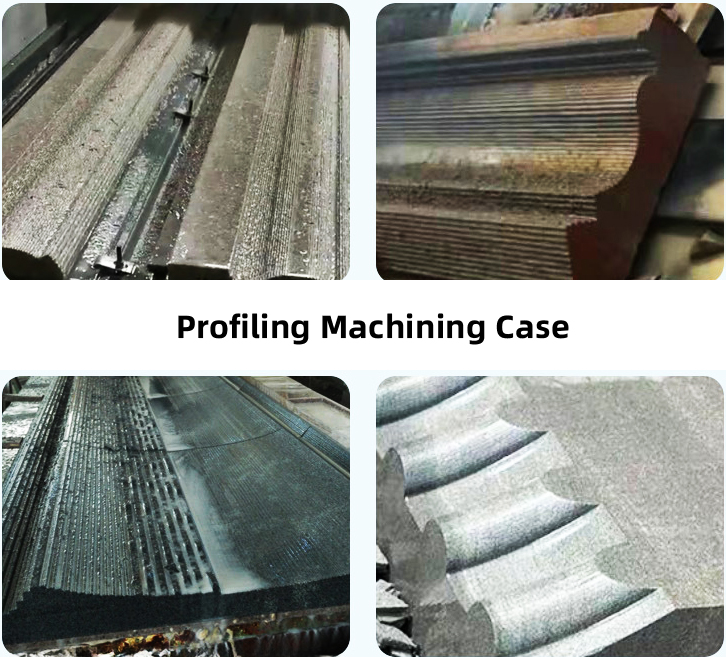

The large-size worktable can place more materials to be processed to improve efficiency. This machine can achieve (profiling and cutting slab bottom directly) one-step forming without manually onindno suits for cutting marble ornate and tombstone.
| Appellation | RS-600-2T |
| Max.blade diameter | 600mm |
| Max.lifting stroke | 430 |
| Worktable size | 32000*1800mm |
| Blades spacing | 900mm |
| Drive system | AC servo motor |
| Drive structure | X/Y axis linear guide + gear row, Z axis four guide columns + ball screw |
| Oil filling system | X/Y axis oil-immersed, Z axis automatic lubrication |
| Power of main motor | 18.5kw |
| Total power | 26.3kw |
| Water consumption | 6m³/h |
| Dimension | 4000*5300*3200 |
| Weight | 4200kg |
CNC profiling cutting machine for stone marble granite factory in China
