Product Overview:

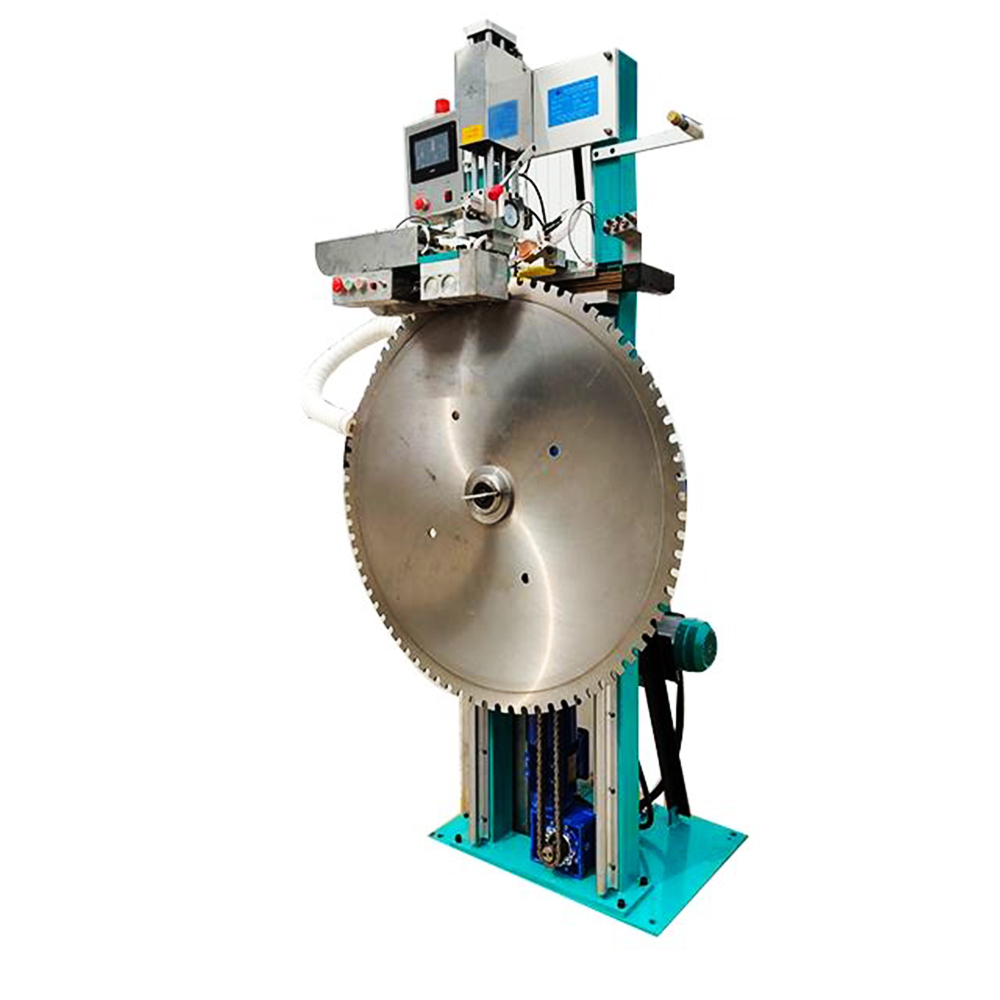

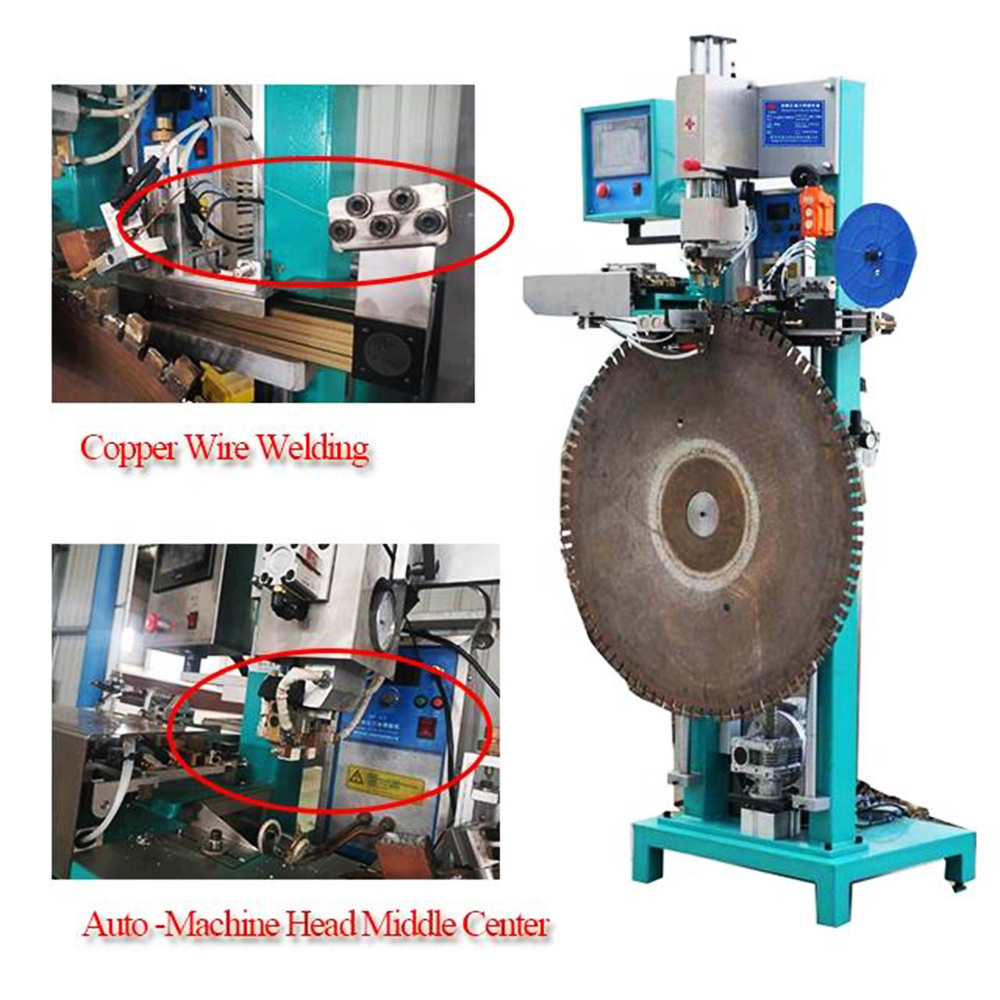

The fully automatic diamond saw blade head welding frame is a specialized automated welding equipment designed for diamond cutting tools. Utilizing high-precision machinery and advanced welding technology, it facilitates rapid and precise welding of diamond saw blade heads, enhancing production efficiency while ensuring welding quality.
| Parameters : | ||
| Model | QZD-1400mm | QZD-2400mm |
| Application Range | Φ350-Φ1400mm | Φ400-Φ2500mm |
| Up & Down Distance | 700mm | 700mm |
| Power | 2KW | 2KW |
| Verticality | Less than 0.03mm | Less than 0.03mm |
| Depth of Parallelism | Less than 0.03mm | Less than 0.03mm |
| Welding Speed | 3-5s/pcs | 3-5s/pcs |
| Air Compressor | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Water Compressor | 0.2Mpa | 0.2Mpa |
| Cooling Water Following | 1.5-2M³/H | 1.5-2M³/H |
| Weight | 460kg | 700kg |
| Size | 1150*1200*1700mm | 1200*1130*2540MM |
Key Features and Advantages:
Automated Operation: Completely automated welding process saves labor and time costs, significantly boosting production efficiency.
High-Precision Welding: Employing cutting-edge technology to achieve precise welding of diamond saw blade heads, ensuring welding quality and consistency.
Flexibility and Multifunctionality: Adaptable to various sizes and types of diamond saw blade heads, providing flexible welding solutions.
Safety and Reliability: The equipment is designed to be safe and reliable, featuring straightforward operation to minimize risks for operators.
Application Areas:
Stone Processing Industry: Used in the production and customization of diamond saw blade heads.
Construction Industry: Applicable for cutting and processing tasks in construction work, such as concrete, bricks, etc.
Industrial Manufacturing: Plays a role in cutting and processing metal, plastic, or other hard materials.
Usage Recommendations:
Thoroughly read the equipment manual before operation to ensure operators understand the correct usage.
Perform regular maintenance and upkeep of the equipment to ensure prolonged efficient operation.
Conclusion:
The fully automatic diamond saw blade head welding frame is an efficient, precise, and versatile welding tool suitable for the production and customization of various diamond cutting tools. Its automated features and high-quality welding capability make it a pivotal equipment in diverse industries aiming to enhance production efficiency.
