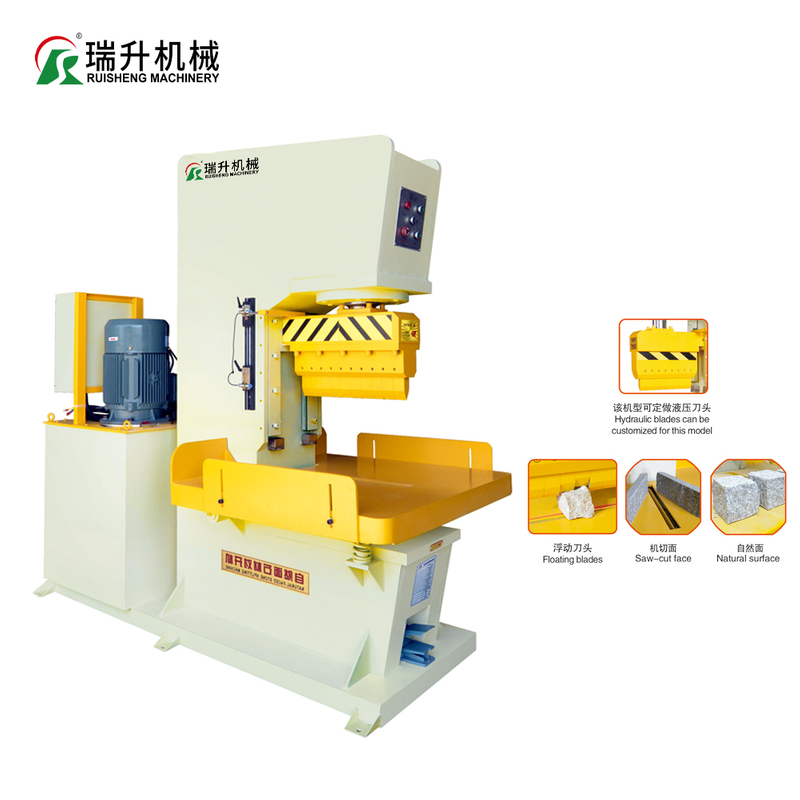

Main Features:
* Open frame machine model, simple to maintain
* Made of strong cast iron and high quality parts ensuring stability during working.
* Fast lift up movement improves the working efficiencty greatly .
* A wedged chisel equilization system to provide maximum contact with the stone surface for a cleaner arris line.
* Heat-treated and hardened high-carbon steel chisels produce superior splits every time.
| Product Parameters | ||
| Type | Unit | RSD-96H |
| Overall Dimension | cm | 215x100x215 |
| Weight | T | 2.2 |
| Power | kw | 11 |
| Voltage | V | 380 |
| Frequency | HZ | 50 |
| Pressure | T | 120 |
| Flow Rate | L/M | 47 |
| Hydraulic Oil Grade | 46# | |
| Blade Feeding Speed | cm/s | 9 |
| Max.working height | cm | 30 |
| Max.working length | cm | 50 |
| Output/Hour | m2 | 18 |
| Oil Tank Capacity | 350L/290KG | |
| Packing Size | cm | 225x110x225 |
| Weight | T | 2.4 |
Main Features:
* Open frame machine model, simple to maintain
* Made of strong cast iron and high quality parts ensuring stability during working.
* Fast lift up movement improves the working efficiencty greatly .
* A wedged chisel equilization system to provide maximum contact with the stone surface for a cleaner arris line.
* Heat-treated and hardened high-carbon steel chisels produce superior splits every time.
| Product Parameters | ||
| Type | Unit | RSD-96H |
| Overall Dimension | cm | 215x100x215 |
| Weight | T | 2.2 |
| Power | kw | 11 |
| Voltage | V | 380 |
| Frequency | HZ | 50 |
| Pressure | T | 120 |
| Flow Rate | L/M | 47 |
| Hydraulic Oil Grade | 46# | |
| Blade Feeding Speed | cm/s | 9 |
| Max.working height | cm | 30 |
| Max.working length | cm | 50 |
| Output/Hour | m2 | 18 |
| Oil Tank Capacity | 350L/290KG | |
| Packing Size | cm | 225x110x225 |
| Weight | T | 2.4 |
