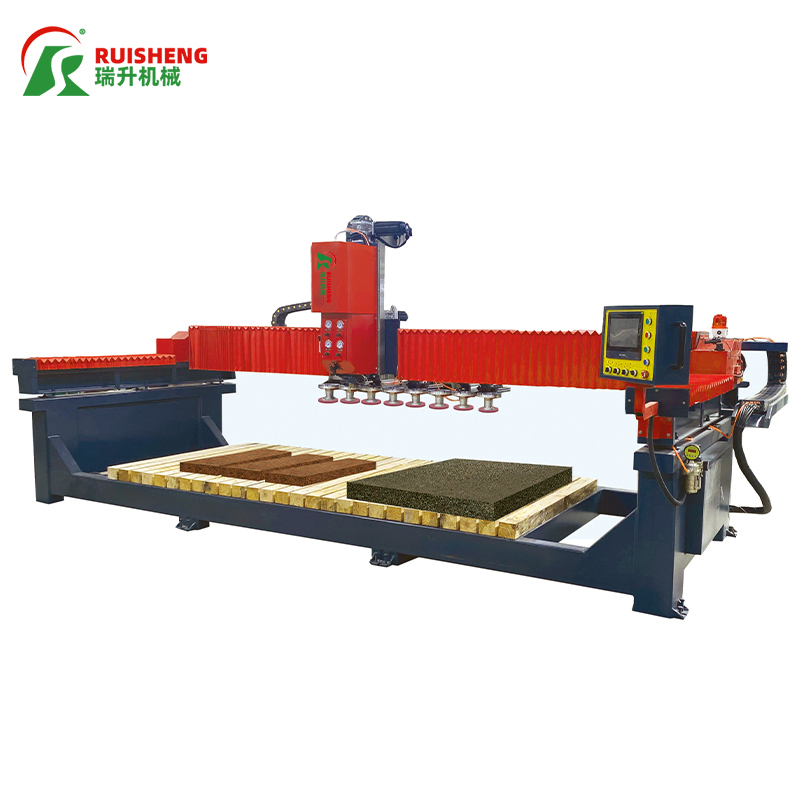

Single Head Automatic Head Changing Stone Polishing Machine
The integrated fully automatic head-changing monument polishing machine has an integrated structure, making the equipment more stable and convenient for container loading and installation.
It has a segmented lifting mechanism, which achieves high-precision and stable thickness setting function through ball screws, linear tracks, and servo motors.
| Наименование товара | Product name | RSMT-200 |
| Диаметр полировального диска | Diameter of polishing disc | 200mm |
| Количество полировальных головок | Number of polishing head | 1 |
| Метод замены | Replacement method | Automatic |
| Ход подъема | Lifting stroke | 550mm |
| Макс. длина полировки | Max. polishing length | 3500mm |
| размер рабочего стола | Working table size | 3500×1300mm |
| Мощность главного двигателя | Main motor power | 7.5kw |
| Суммарная мощность | Total power | 14kw |
| Размер машины | Machine size | 5600×2300×1800mm |
| Потребление воды | Water consumption | 6m³/h |
| Масса | Weight | 5000kg |
The pressure-stable polishing is achieved through the pneumatic lifting of the machine head, The multi-workstation design allows the machine to visit multiple stones of different sizes simultaneously. The specially designed polishing system can achieve a series of functions such as individual switches, speed regulation, and pressure regulation for each grinding head. With simple program settings, it is possible to achieve stone polishing with different sizes, materials, and process requirements.

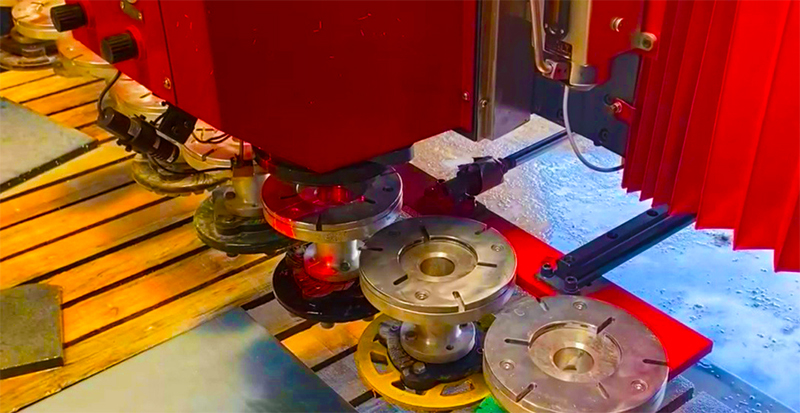

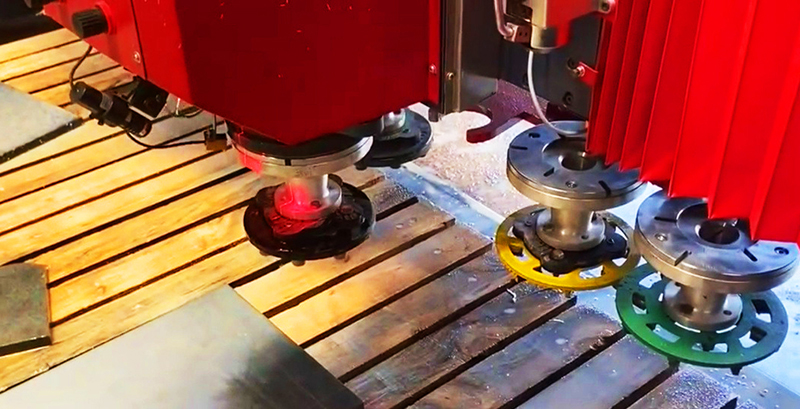

The fully automatic tool-changing function allows one person to operate multiple devices, resulting in more stable polishing quality.
