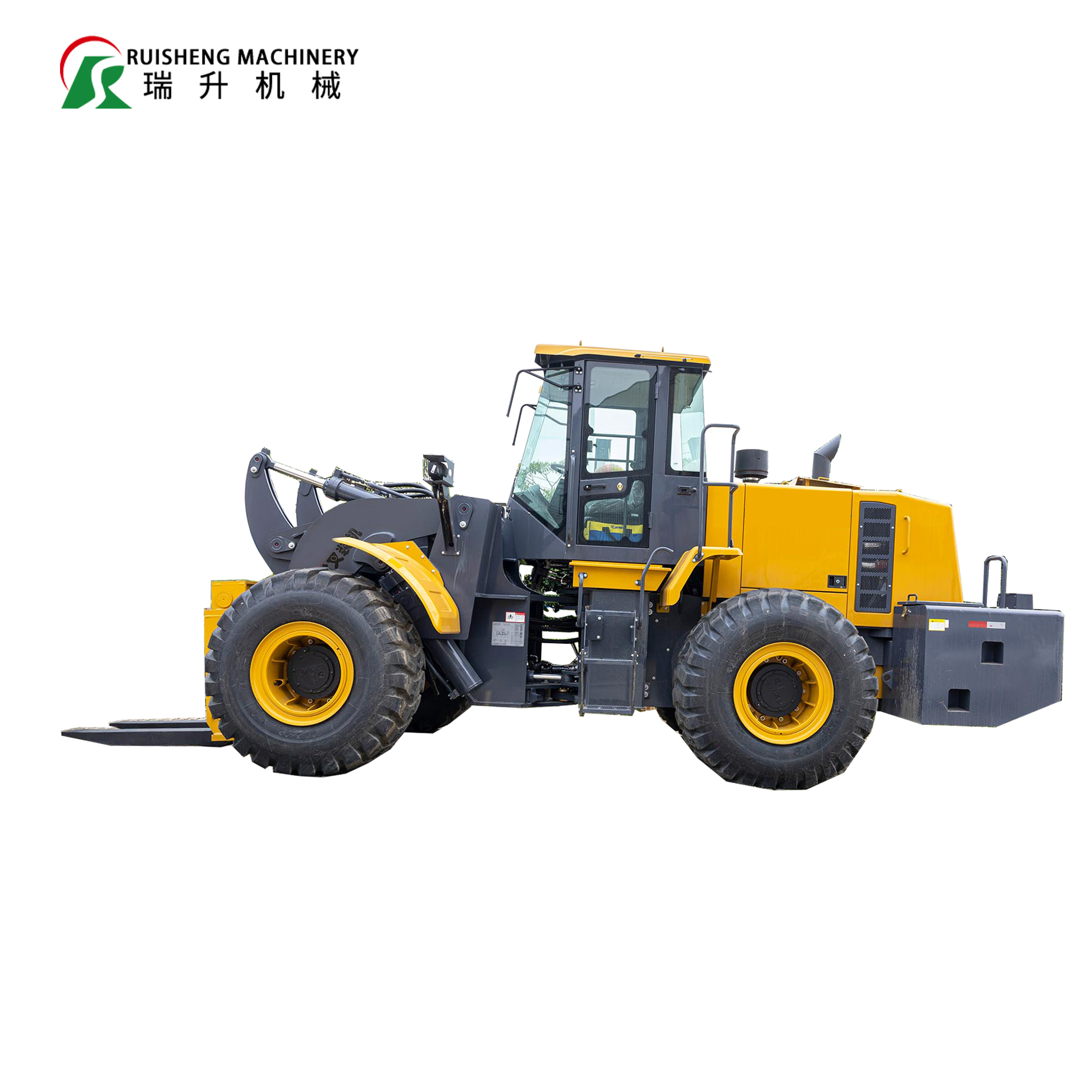

The specialized heavy-duty block forklift designed for stone quarrying is a robust handling equipment tailored for mining and stone extraction operations. Its powerful load-bearing capacity and specialized design enable efficient and precise handling of stone blocks, playing a pivotal role in mining excavation and stone material processing.
| RSM761FT28KN | RSM771FT32KN | RSM791FT50KN | ||||
| 整机重量 | Operating Weight（kg） | 28000 | 32400 | 52000 | ||
| 最大载重量 | Max. Load ( Fork From Groud<1600mm )kg | 28000 | 32000 | 50000 | ||
| 载荷中心距 | Load Center Distance（mm） | 600 | 900 | 900 | ||
| 最大举升高度 | Max. Lifting Height（mm） | 3200 | 3500 | 3550 | ||
| 货叉尺寸(长x宽x高) | Fork Size (L x W x H)mm | 1500x240x120 | 1500x220x130 | 1800x280x15 5 | ||
| 货叉间距调整范围 | Fork Spacing Adjustment Range（mm） | 270~835 | - | - | ||
| 整机外形尺寸(长x宽x高) | Overall Size (L x W x H)mm | 8535x3050x3525 | 9290x3050x3590 | 10730x3705x4050 | ||
| 最小转弯半径 | Min. Turn Radius（mm） | 8000 | 8500 | 10030 | ||
| 最小离地间隙 | Min. Ground Clearance（mm） | 400 | 480 | 465 | ||
| 轴距 | Wheel Base（mm） | 3950 | 4200 | 4655 | ||
| 离去角 | Departure angle | 20° | 20° | 22° | ||
| 最大牵引力 | Max. Tractive Force（kN） | >221 | N220 | 340 | ||
| 行驶速度 | 前进1档 | Travel Speed（km/h） | Forward 1 Gear Shift | 0~10 | 0-10.8 | 0~6/0~10 |
| 前进2档 | Forward 1 Gear Shift | 0~35 | 0-30.4 | 0~22/0~32 | ||
| 后退1/2档 | Reverse 1/2 Gear Shift | 0~13 | 0~12 | 0 〜6/0 ~ 10/0 ~ 22 | ||
| 三项和时间 | Total Cycling Time（s） | <17.7 | <19 | - | ||
| 发动机功率 | Engine Power（kW） | 178 | 178 | 276 | ||
| 燃油箱容 | Fuel Tank Capacity（L） | 220 | 220 | 450 | ||
| 液压油箱容量 | Hydraulic Oil Tank Capacity（L） | 270 | 270 | 320 | ||
Key Features and Advantages:
Exceptional Block Handling: Engineered for the handling and loading of large and heavy stone blocks in mining and quarrying, effectively managing various block sizes and weights.
Durable and Reliable Design: Sturdy construction and resilient materials ensure stability and long-term functionality in harsh operating environments.
Precision in Operation: Offers precise control, allowing operators to handle block loading and transportation with ease and safety.
Applicability in Mining and Stone Industry: Specifically designed to meet the distinct handling requirements of mining and stone industries, enhancing operational efficiency.
Application Areas:
Mining Excavation: Used for excavation, handling, and loading stone blocks, improving operational efficiency in quarry sites.
Stone Material Processing: Utilized in stone processing plants for block handling and loading, ensuring smooth production processes.
Construction Field: Employed in construction sites for the transportation and loading of large stone blocks, meeting construction needs.
Usage Recommendations:
Operators should undergo professional training to ensure safe and proper equipment operation.
Regular maintenance is advised to uphold equipment performance and condition.
The specialized heavy-duty block forklift for stone quarrying serves as a critical equipment meeting the unique demands of mining and stone processing industries. Its robust performance and reliability make it an ideal choice for block handling and transportation, contributing to increased production efficiency and optimized workflow.
