How to choose the tool for the CNC engraving Machine for Granite?
The importance of the tool runs through the whole engraving work. Choosing the right high-quality tool will not only bring you exquisite engravings but also greatly improve your work efficiency and save engraving costs. Therefore, it is very necessary for every user who uses the engraving machine to understand and master the relevant knowledge of CNC engraving Machine for Granite engraving tools. Here is a brief introduction to the commonly used tools:
CNC Engraving Machine for Granite Tools
1. For acrylic cutting, a single-edged spiral milling cutter is recommended. The characteristics are smokeless and odorless, fast speed, high efficiency, non-stick knife, and smooth surface. Of course, if it is an acrylic sheet, a double-edged milling cutter or a column knife can also be used.
2. For aluminum plate cutting, it is recommended to use a single-edged special aluminum milling cutter. The knife does not stick during processing, the speed is fast, and the efficiency is high. If the cutting surface requirements are not high or the aluminum hardness is high, a double-edged metal milling cutter can also be used.
3. For precision relief processing of non-metallic materials, it is recommended to use a round bottom engraving knife.
4. For cork, density board, native wood, PVC, and large-scale acrylic relief processing, it is recommended to use a single-edged or double-edged spiral milling cutter.
5. For metal engraving, use metal-specific tungsten steel-coated single-edge or double-edge milling cutters and special flat-bottomed sharp knives.
6. For density boards, solid wood, multi-layer boards, and plywood, it is recommended to use straight groove milling cutters, or double-edge large-row milling cutters.
7. For metal mold processing, use tungsten steel milling cutters with purple-black hardened titanium on the surface.

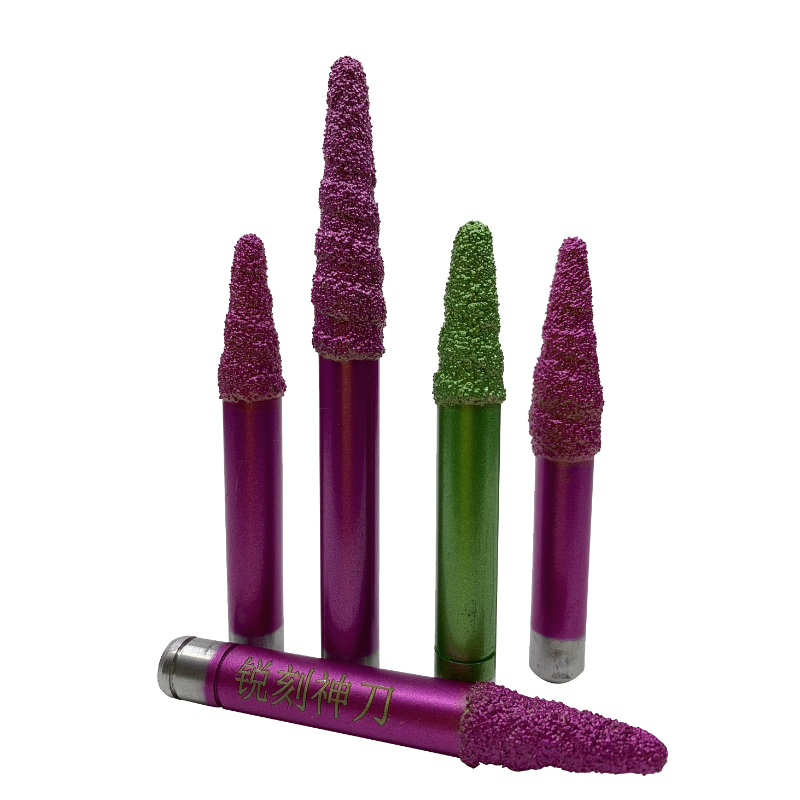

8. For jade or stone engraving, use diamond engraving knives.

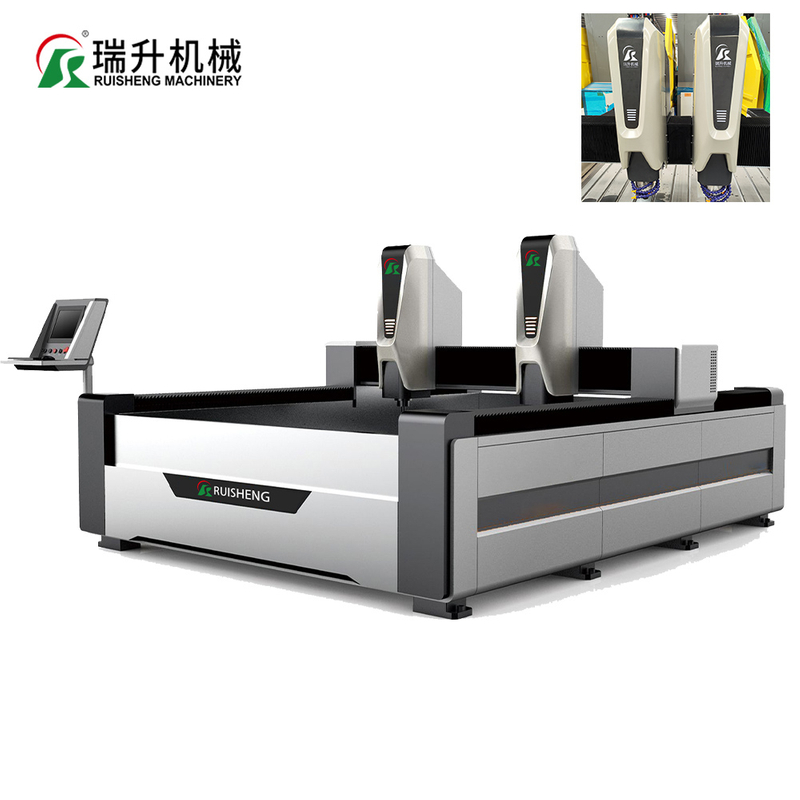

| 2030T-2D Double-Spindle | 3020T-2D/3D/4D | |
| Processing size | 2000*3000*300mm | 3000*2000mm |
| Dimension of external form | 3200*4300*2300mm | 4300*3200*2100mm |
| Processing material size | Double:950*3000mm single:1500*3000mm | 1400*1900*2/850*1900*3/650*1900*4 |
| Weight | 3.0T | 3.6T |
| Spindle power | 7.5KW*2 | 7.5KW |
| Spindle speed | 24000rm/min | 24000rm/min |
| Voltage | 380V/50HZ | 380V/50HZ |
| Motion positioning accuracy | ±0.02 mm | ±0.02 mm |
| Repeatability | ±0.01 mm | ±0.01 mm |
| air speed | 20m/min | 20m/min |
| processing speed | 20m/min | 20m/min |
| engraving tool | 6/8/10/12/14/16mm | 6/8/10/12/14/16mm |
Good software compatibility can be compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software,
2D/3D/4D processing is more convenient to use.
Q: How can I place an order Cnc Engraving Machine for Granite?
A：You can contact any of our sales person for an order. Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.For designing or further discussion, it is better to contact us with Whatsapp, Wechat ,or Messenger or other instant ways, in case of any delays.
Q: Is the transportation safe enough?
A:We pack the goods very well. You will get the goods on hand with good condition. We have more than 20+ years experience,don’t worry for that.
Q:Can l visit your factory?
A:By all means, we warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.
