| Quantity: | |
|---|---|

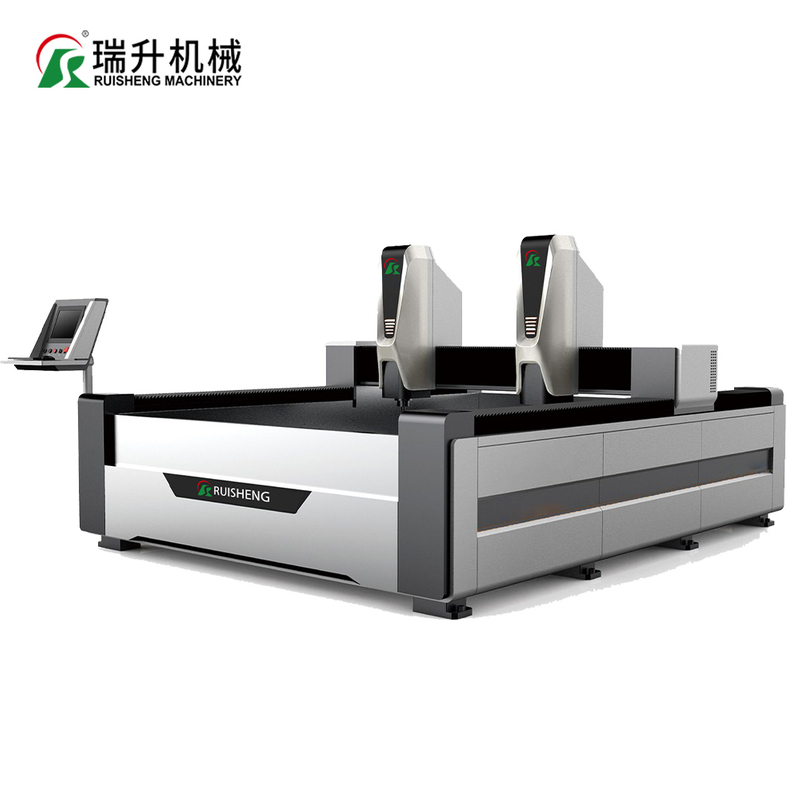

| 2030T-4D 4-Spindle | |
| Processing size | 2000*3000*300mm |
| Dimension of external form | 3200*4300*2300mm |
| Processing material size | Double:950*3000mm single:1500*3000mm |
| Weight | 3.0T |
| machine tool | |
| Beam | Thickened bridge steel |
| Rail | Y. Z-axis 25 rail(Y-axis dual track),X-axis 30 rail |
| Spindle power | 7.5KW*4 |
| Spindle speed | 24000rm/min |
| Frequency converter | 7.5KW*4 |
| Voltage | 380V/50HZ |
| Instruct | G-code/HPGL/ENG/MMG/nc/u00 |
| Motion positioning accuracy | 0.02 mm |
| Repeatability | 0.01 mm |
Big power spindle, greating cutting indensity, high efficiency, lowe noise.
The special designed Z-axis structure, increasing the stone relief precision effectively, making the ball screw
broken of Z-axis failure rate to the lowest.
Using the high precision rack and pinion transmission, higher precision, fast speed and powerful.
Gantry moving, more fast, stable, uniformity, no shaking for the whole machine.
Stainless steel water slot cooling system, ensuring the tools get the adequate cooling, prolong the tools life time,
getting the more better engraving effect.
Continuing working after the break point/power failure, lower the rejection rate.
Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software,
2D/3D processing, more convenient to using.
