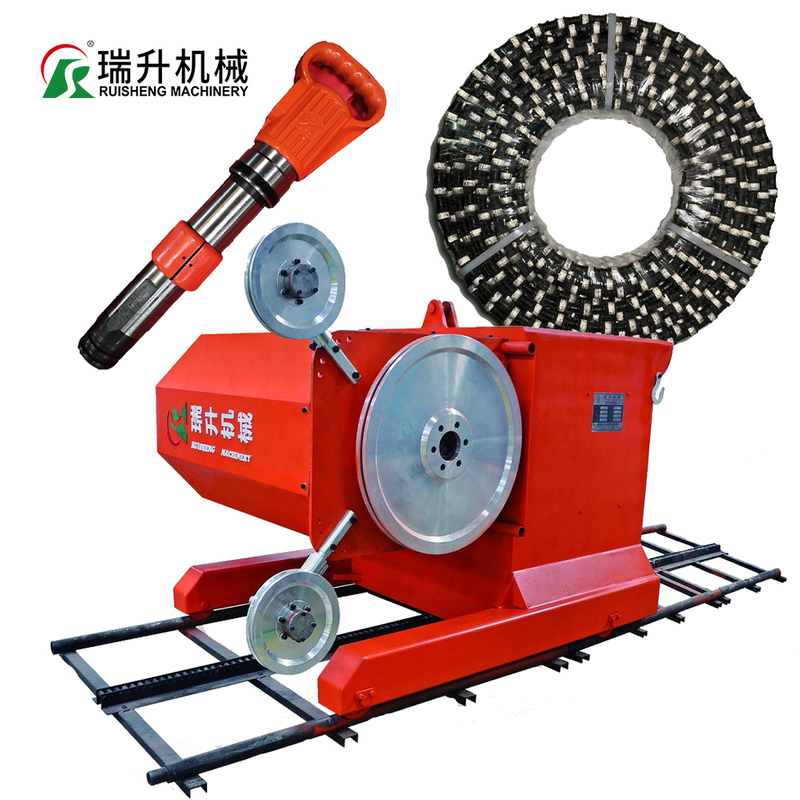

Diamond Wire Saw is a good tool for quarries because it can cut through a variety of different types of rock, including marble, granite, travertine, and limestone, with relative ease.
Diamond Wire Saw for Marble Quarrying is a highly efficient, versatile, and safe cutting tool that is essential for the marble quarrying industry. Its ability to cut through different types of rock with ease, operate without water, and produce precise cuts makes it the ideal tool for any quarrying operation.
| Product name | Unit | |||||
| RS-55D-6 | RS-750-6 | RS-55H-8 | RS-75H-8 | |||
| Main motor power | kw | 55 | 75 | 55 | 75 | |
| Main flywheel diameter | mm | 800 | 800 | 800 | 800 | |
| Wire speed | m/s | 0-40 | 0-40 | 0-30 | 0-30 | |
| Max.wire length | m | 20-100 | 20-120 | 20-100 | 20-120 | |
| Walking motor power | kw | 1.5 | 1.5 | 1.5 | 1.5 | |
| Lateral moving distance | mm | 620 | 620 | 620 | 620 | |
| Max.lateral cutting distance | mm | 2020 | 2020 | 2020 | 2020 | |
| Walking speed of machine | m/n | 0-60 | 0-60 | 0-60 | 0-60 | |
| Length of rails | m | 2x4 | 2x4 | 2x4 | 2x4 | |
| Total power | kw | 59.5 | 79.5 | 59.5 | 79.5 | |
| Allowed working temperature | ºC | -15~+50 | -15~+50 | -15~+50 | -15~+50 | |
| Dimension | mm | 2000×1450×1650 | 2150x1450×1650 | 2000×1450x1650 | 2150x1450x1650 | |
| Net weight | kg | 3300 | 3500 | 3400 | 3600 | |
FAQ:
Q1: What is a diamond wire saw for marble quarrying?
A1: A diamond wire saw is a specialized tool used to cut through marble blocks in quarrying operations.
Q2: How does a diamond wire saw work?
A2: The diamond wire is threaded through holes drilled in the marble block and connected to a machine which rotates the wire, creating a cutting motion that slices through the block.
Q3: What are the advantages of using a diamond wire saw for marble quarrying?
A3: The diamond wire saw is an efficient and precise tool that allows for clean cuts and minimal waste. It is also safer to use than traditional cutting methods and can be operated remotely, reducing the risk of injury to workers.
Q4: What are the different types of diamond wire saws for marble quarrying?
A4: There are several types of diamond wire saws available, including single-wire saws, multi-wire saws, and fixed diamond wire saws, each with their own unique features and benefits.
Q5: How do I choose the right diamond wire saw for my marble quarrying operation?
A5: Choosing the right diamond wire saw depends on a variety of factors, including the size and characteristics of the marble blocks being cut, the desired cutting speed and precision, and the budget for the equipment. Consulting with a manufacturer or distributor of diamond wire saws can help determine which tool is best suited for your needs.
Diamond Wire Saw is a good tool for quarries because it can cut through a variety of different types of rock, including marble, granite, travertine, and limestone, with relative ease.
Diamond Wire Saw for Marble Quarrying is a highly efficient, versatile, and safe cutting tool that is essential for the marble quarrying industry. Its ability to cut through different types of rock with ease, operate without water, and produce precise cuts makes it the ideal tool for any quarrying operation.
| Product name | Unit | |||||
| RS-55D-6 | RS-750-6 | RS-55H-8 | RS-75H-8 | |||
| Main motor power | kw | 55 | 75 | 55 | 75 | |
| Main flywheel diameter | mm | 800 | 800 | 800 | 800 | |
| Wire speed | m/s | 0-40 | 0-40 | 0-30 | 0-30 | |
| Max.wire length | m | 20-100 | 20-120 | 20-100 | 20-120 | |
| Walking motor power | kw | 1.5 | 1.5 | 1.5 | 1.5 | |
| Lateral moving distance | mm | 620 | 620 | 620 | 620 | |
| Max.lateral cutting distance | mm | 2020 | 2020 | 2020 | 2020 | |
| Walking speed of machine | m/n | 0-60 | 0-60 | 0-60 | 0-60 | |
| Length of rails | m | 2x4 | 2x4 | 2x4 | 2x4 | |
| Total power | kw | 59.5 | 79.5 | 59.5 | 79.5 | |
| Allowed working temperature | ºC | -15~+50 | -15~+50 | -15~+50 | -15~+50 | |
| Dimension | mm | 2000×1450×1650 | 2150x1450×1650 | 2000×1450x1650 | 2150x1450x1650 | |
| Net weight | kg | 3300 | 3500 | 3400 | 3600 | |
FAQ:
Q1: What is a diamond wire saw for marble quarrying?
A1: A diamond wire saw is a specialized tool used to cut through marble blocks in quarrying operations.
Q2: How does a diamond wire saw work?
A2: The diamond wire is threaded through holes drilled in the marble block and connected to a machine which rotates the wire, creating a cutting motion that slices through the block.
Q3: What are the advantages of using a diamond wire saw for marble quarrying?
A3: The diamond wire saw is an efficient and precise tool that allows for clean cuts and minimal waste. It is also safer to use than traditional cutting methods and can be operated remotely, reducing the risk of injury to workers.
Q4: What are the different types of diamond wire saws for marble quarrying?
A4: There are several types of diamond wire saws available, including single-wire saws, multi-wire saws, and fixed diamond wire saws, each with their own unique features and benefits.
Q5: How do I choose the right diamond wire saw for my marble quarrying operation?
A5: Choosing the right diamond wire saw depends on a variety of factors, including the size and characteristics of the marble blocks being cut, the desired cutting speed and precision, and the budget for the equipment. Consulting with a manufacturer or distributor of diamond wire saws can help determine which tool is best suited for your needs.
