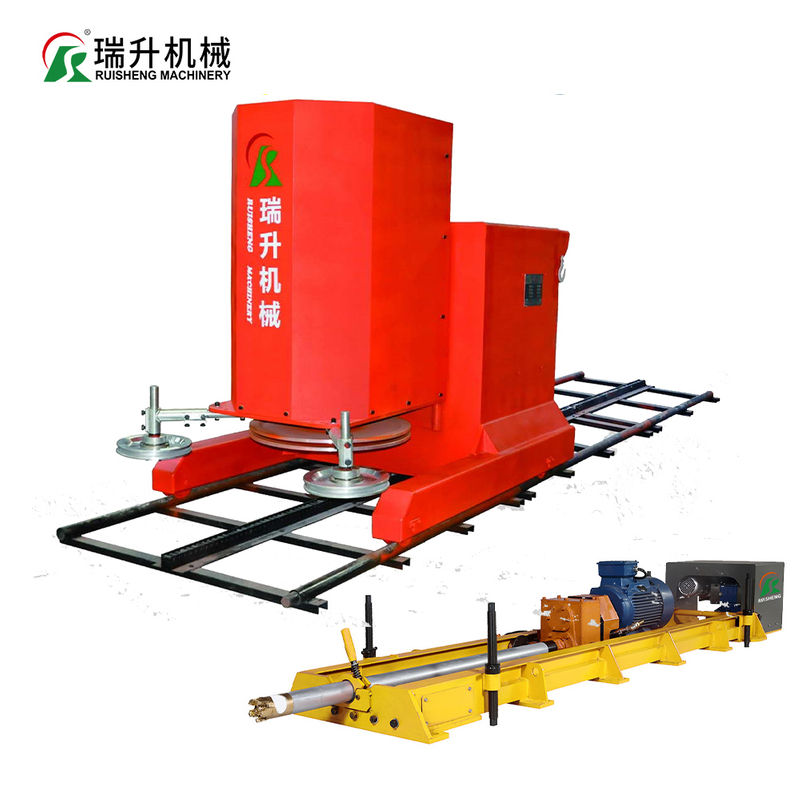

| PRODUCT INTRODUCTION 1, PLC control, touch screen, physical keys, two modes can be operated, more accurate control, more convenient operation. 2, the use of the latest Internet of things technology, real-time remote monitoring of equipment, diagnosis, data collection and analysis. 3, the electrical components are domestic and foreign well-known brands, stable and reliable quality. | ||||||
| TECHNICAL PARAMETER | ||||||
| Product name | /Unit | |||||
| RS-55D-6 | RS-750-6 | RS-55H-8 | RS-75H-8 | |||
| Main motor power | kw | 55 | 75 | 55 | 75 | |
| Main flywheel diameter | mm | 0800 | Φ800 | 0800 | 4800 | |
| Wire speed | m/s | 0-40 | 0-40 | 0-30 | 0-30 | |
| Max.wire length | m | 20-100 | 20-120 | 20-100 | 20-120 | |
| Walking motor power | kw | 1.5 | 1.5 | 1.5 | 1.5 | |
| Lateral moving distance | mm | 620 | 620 | 620 | 620 | |
| Max.lateral cutting distance | mm | 2020 | 2020 | 2020 | 2020 | |
| Walking speed of machine | m/n | 0-60 | 0-60 | 0-60 | 0-60 | |
| Length of rails | m | 2x4 | 2x4 | 2x4 | 2x4 | |
| Total power | kw | 59.5 | 79.5 | 59.5 | 79.5 | |
| Allowed working temperature | ºC | -15~+50 | -15~+50 | -15~+50 | -15~+50 | |
| Dimension | mm | 2000×1450×1650 | 2150x1450×1650 | 2000×1450x1650 | 2150x1450x1650 | |
| Net weight | kg | 3300 | 3500 | 3400 | 3600 | |
| PRODUCT INTRODUCTION 1, PLC control, touch screen, physical keys, two modes can be operated, more accurate control, more convenient operation. 2, the use of the latest Internet of things technology, real-time remote monitoring of equipment, diagnosis, data collection and analysis. 3, the electrical components are domestic and foreign well-known brands, stable and reliable quality. | ||||||
| TECHNICAL PARAMETER | ||||||
| Product name | /Unit | |||||
| RS-55D-6 | RS-750-6 | RS-55H-8 | RS-75H-8 | |||
| Main motor power | kw | 55 | 75 | 55 | 75 | |
| Main flywheel diameter | mm | 0800 | Φ800 | 0800 | 4800 | |
| Wire speed | m/s | 0-40 | 0-40 | 0-30 | 0-30 | |
| Max.wire length | m | 20-100 | 20-120 | 20-100 | 20-120 | |
| Walking motor power | kw | 1.5 | 1.5 | 1.5 | 1.5 | |
| Lateral moving distance | mm | 620 | 620 | 620 | 620 | |
| Max.lateral cutting distance | mm | 2020 | 2020 | 2020 | 2020 | |
| Walking speed of machine | m/n | 0-60 | 0-60 | 0-60 | 0-60 | |
| Length of rails | m | 2x4 | 2x4 | 2x4 | 2x4 | |
| Total power | kw | 59.5 | 79.5 | 59.5 | 79.5 | |
| Allowed working temperature | ºC | -15~+50 | -15~+50 | -15~+50 | -15~+50 | |
| Dimension | mm | 2000×1450×1650 | 2150x1450×1650 | 2000×1450x1650 | 2150x1450x1650 | |
| Net weight | kg | 3300 | 3500 | 3400 | 3600 | |
