| Quantity: | |
|---|---|
| TECHNICAL PARAMETER | ||||||
| Product name | /Unit | |||||
| RS-55D-6 | RS-750-6 | RS-55H-8 | RS-75H-8 | |||
| Main motor power | kw | 55 | 75 | 55 | 75 | |
| Main flywheel diameter | mm | 0800 | Φ800 | 0800 | 4800 | |
| Wire speed | m/s | 0-40 | 0-40 | 0-30 | 0-30 | |
| Max.wire length | m | 20-100 | 20-120 | 20-100 | 20-120 | |
| Walking motor power | kw | 1.5 | 1.5 | 1.5 | 1.5 | |
| Lateral moving distance | mm | 620 | 620 | 620 | 620 | |
| Max.lateral cutting distance | mm | 2020 | 2020 | 2020 | 2020 | |
| Walking speed of machine | m/n | 0-60 | 0-60 | 0-60 | 0-60 | |
| Length of rails | m | 2x4 | 2x4 | 2x4 | 2x4 | |
| Total power | kw | 59.5 | 79.5 | 59.5 | 79.5 | |
| Allowed working temperature | ºC | -15~+50 | -15~+50 | -15~+50 | -15~+50 | |
| Dimension | mm | 2000×1450×1650 | 2150x1450×1650 | 2000×1450x1650 | 2150x1450x1650 | |
| Net weight | kg | 3300 | 3500 | 3400 | 3600 | |

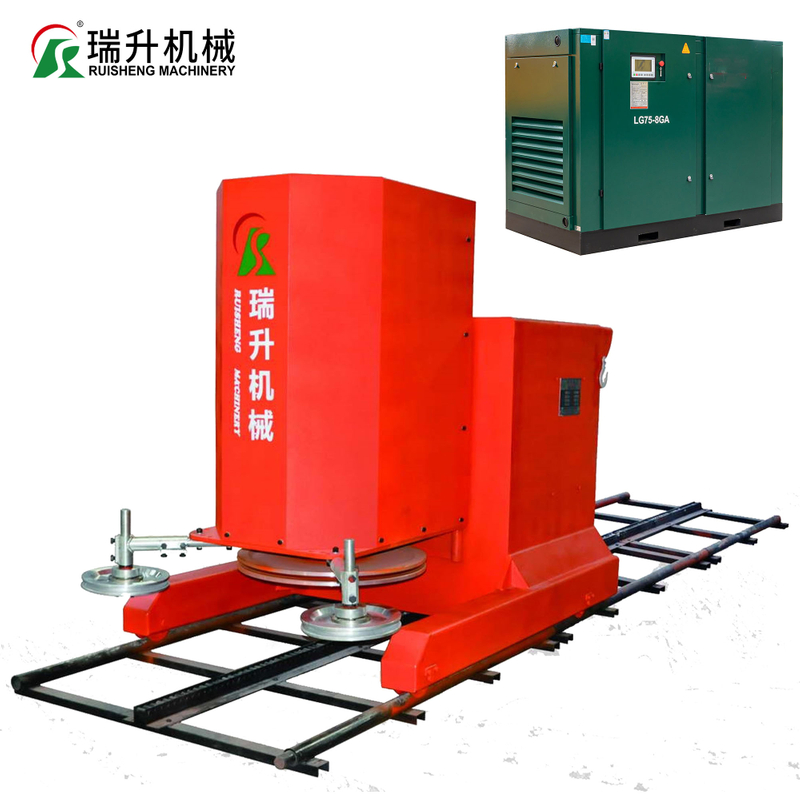

Q1: What is a wire saw granite cutting machine?
A1: A wire saw granite cutting machine is a machine used for cutting granite blocks or slabs with the help of a diamond wire saw. It is one of the most efficient and widely used machines for cutting granite due to its precision and cost-effectiveness.
Q2: What types of granite can be cut using a wire saw granite cutting machine?
A2: A wire saw granite cutting machine can cut all types of granite, whether it is soft or hard. It is also suitable for cutting other hard stones and concrete.
Q3: How does a wire saw granite cutting machine work?
A3: A wire saw granite cutting machine works by using a diamond coated wire to cut through the granite block or slab. The wire is pulled through the stone using a set of rollers and a motorized pulley system. The wire can be adjusted to cut at various angles and depths to create different shapes and sizes of granite.
Q4: What are the advantages of using a wire saw granite cutting machine?
A4: The main advantages of using a wire saw granite cutting machine are its precision, speed, and cost-effectiveness. It can cut through granite quickly and with minimal wastage. The machine also allows for more intricate cuts and shapes to be made, making it ideal for creating customized designs.
Q5: Where can I find a wire saw granite cutting machine?
A5: Wire saw granite cutting machines can be found at specialized stone cutting and polishing equipment suppliers. You can also search online for suppliers or manufacturers who can provide you with a machine that suits your needs.
