| Quantity: | |
|---|---|
| No. | G10 | G15 | G20 |
| Weight(KG) | 10 | 14.5 | 17.5 |
| Length(mm) | 610 | 640 | 680 |
| Piston Stroke(mm) | 155 | 185 | 200 |
| Working pressure(Mpa) | 0.63 | 0.63 | 0.63 |
| SCFM | ≤26 | ≤27 | ≤28 |
| Impact Frequency(Hz) | ≥16.5 | ≥17.5 | ≥16 |
| Inner diameter of air pipe(mm) | 16 | 16 | 19 |
| Bit Shank Size(mm) | 24*70 | 24*70 | 30*87 |
1, Strictly control of material using, meet international requested standards.
2, Import bearing parts and use high wear-resisting precision castings to greatly prove the life of the product.
3, Belongs to a kind of pneumatic instrument combined with the mature international technology.
4, Hand-held pneumatic tool, use compressed air to push the piston reciprocating movement, keep the pick up to the impact.

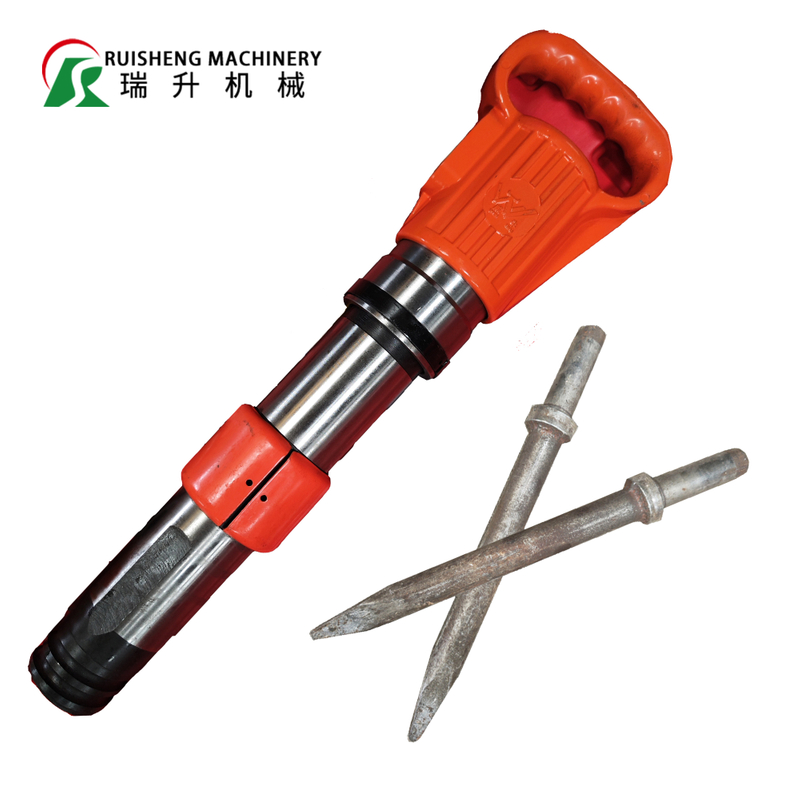

The pneumatic pick is a hand-held construction tool that uses compressed air as the power to break hard objects by impact.
It has the characteristics of light weight, simple structure, convenient operation and high efficiency, and is widely used in coal mining, soft rock mining, and construction sites.
The pneumatic pick consists of an air distribution mechanism, an impact mechanism and a pick drill. The impact mechanism is a thick-walled cylinder with an impact hammer that can reciprocate along the inner wall of the cylinder. The tail of the pick is inserted into the front end of the cylinder, and the rear end of the cylinder is equipped with a valve box.
