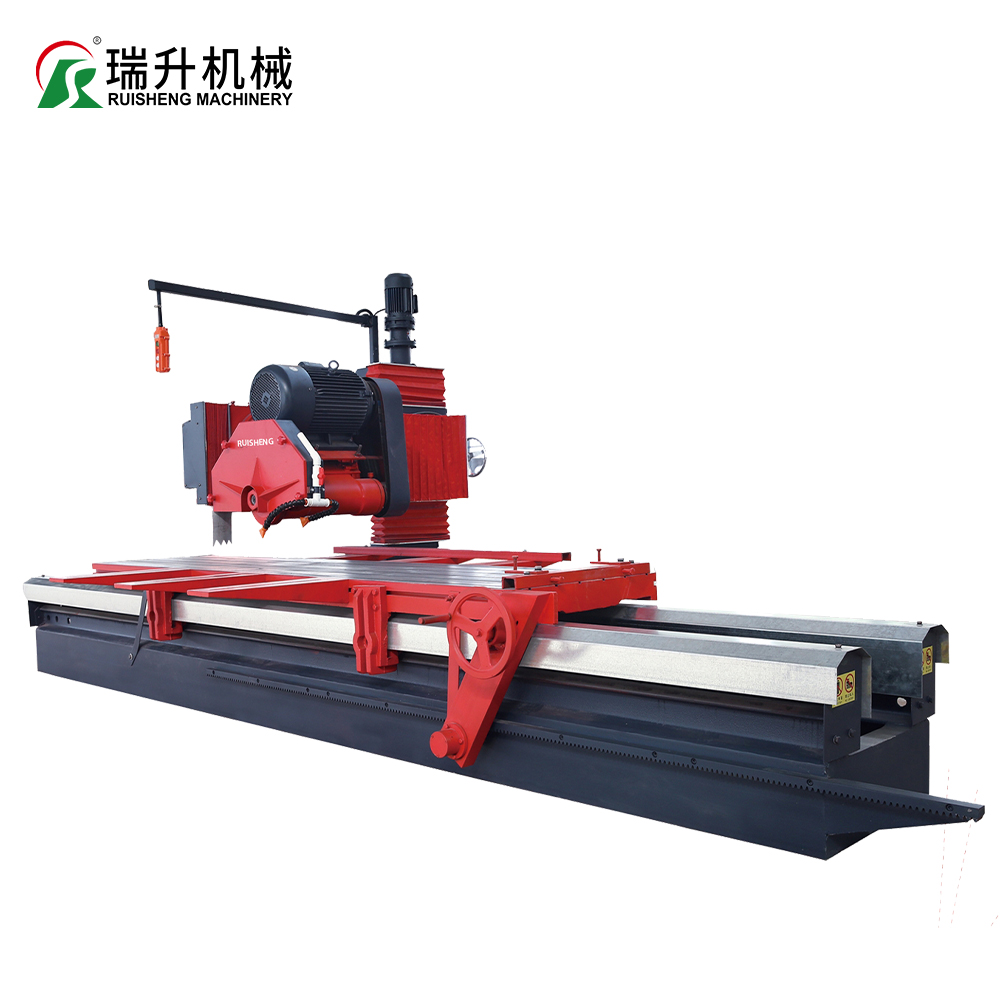

Stone Machinery Manual Stone Edge Miter Cutting Tile Slab Chamfering Cutter Saw 45 Degree Tilting

Ruisheng SQA-600 design of man-machine integration mode of operation, is specially for an easy and high efficiency processing for the edge cutting and trimming of small slates, slab, lath or even thick tile.
1) Cutting head can rotate 0-90 degree and be electrically moving up and down.
2) Workbench drived by hand.
3) Strong constructure, stable performance and fine appearance.
4) Head can 45 degree titling cutting.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

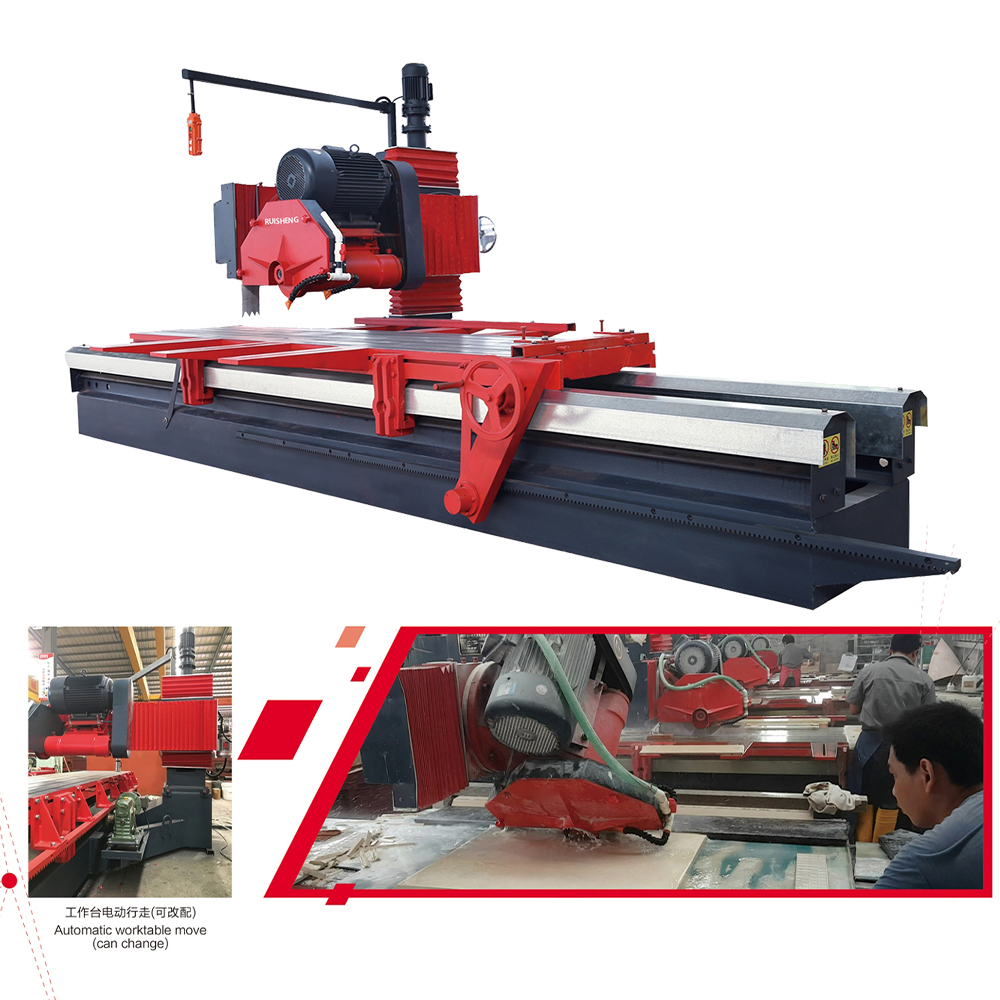

Manual cutting machine

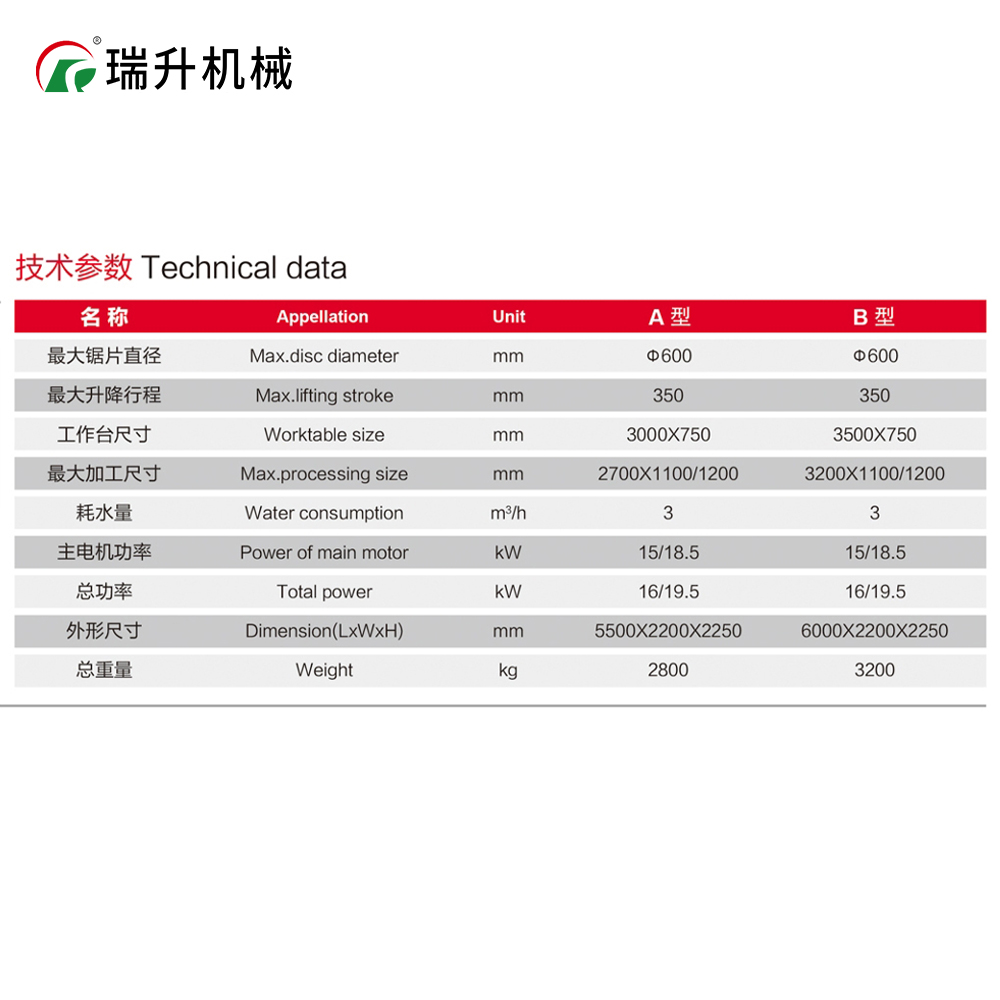

Manual cutting machine data

Appellation Unit A B
Max. disc diameter mm Φ600 Φ600
Max. lifting stroke mm 350 350
Worktable size mm 3000×750 3500×750
Max. processing size mm 2700×1100/1200 3200×1100/1200
Water consumption m³/h 3 3
Power of main motor kw 15/18.5 15/18.5
Total power kw 16/19.5 16/19.5
Dimension mm 5500×2200×2250 6000×2200×2250
Weight kg 2800 3200

1 (5)

1 (6)

1 (8)

Why Choose Our Stone Manual Polishing Machine?


Excellent Quality: We are committed to providing products of excellent quality. All our Manual Polishing Machine undergo strict quality control and testing to ensure high-performance and durability.


Customer Support: We offer comprehensive customer support and after-sales services, including product consultation, technical support, and issue resolution.
