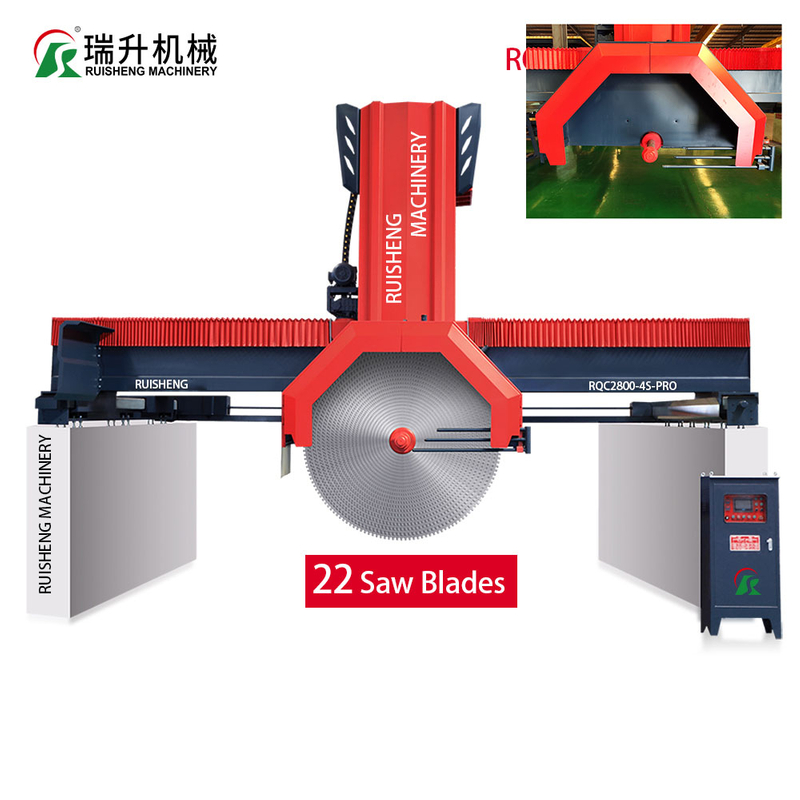

Our Multi Blade Granite Cutting Machine is the ultimate solution for efficient and precise stone block cutting.
With its multiple blades, the cutting machine allows for the simultaneous cutting of stone blocks, saving you valuable time and increasing productivity.
This cutting machine is designed to handle various types of stone blocks, making it versatile and suitable for a wide range of applications.
| Product name | Unit | WY-2200 | WY-2500 | WY-2800 |
| Blade diameter | mm | Φ2200 | Φ2500 | Φ2800 |
| Maximum lifting stroke | mm | 1400 | 1400 | 1400 |
| Maximum machining length | m | 3000 | 3000 | 3300 |
| Maximum processing width | ne | 2200 | 2200 | 2500 |
| Saw blade number | pcs | 3-5 | 6-9 | 9-13 |
| Wate consumption | m3/h | 15 | 15 | 15 |
| Main motor power | Kw | 37 | 45 | 55 |
| Total power | Kw | 47 | 55 | 65 |
| Weight | kg | 12000 | 12000 | 13500 |
| Oveiall dimensions(LxWxH) | m | 8.0x4.4x3.7 | 8.0x4.4x3.7 | 9.5x4.7x3.9 |
The RS-2200/2500/2800 Multi-Blade Granite Cutting Machine uses a PLC system and Human-machine interface, combined with an ultra-high-precision rotary encoder to slice. It also uses an inverter to control left-right feeding and adjust the speed according to the stone block.
Multi Blade Granite Cutting Machine uses a hydraulic lifting system, and the forward-backward slicing uses high-precision screw nut driving, and automatic slicing, main spare parts adopt imported good-quality materials,
The block can be placed on the ground directly, economizing the worktable and its maintenance costs. The Multi-Blade Granite Cutting Machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, and easy operation to suit granite and marble blocks with high value.
Note:360 rotating worktable can be selected if customer re-quires.
FAQ:
Q: What is the MOQ ?
A: 1 set.
Q: When will you ship my order ?
A: Normally 25-30 days after deposit received, If urgent, it can be negotiated.
Q: What’s the warranty time ?
A: One year, but technical support will be lifetime.
Q: Can You Customize The Machine I Want?
A: ODM/OEM business partners will be warmly welcomed.
Q: Have you been exported to our country?
A: We have exported this kind of machine to Russia, France, Italy, Finland, Armenia, South Africa, Madagascar, Korea, India, Indonesia, Vietnam...

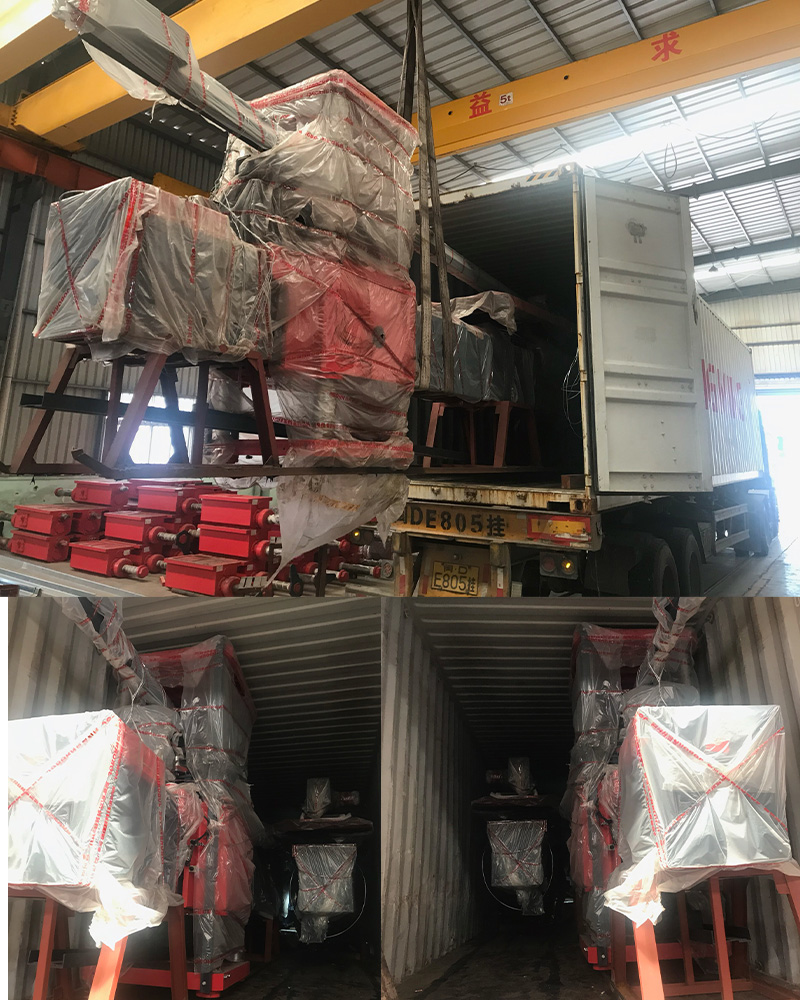

Q: How about the package & shipment?
A: The main parts will be wrapped in PE film. Also, the steel ropes will be used to fix the machines in the container for keeping the stable of machines during the shipment.
Multi Blade Granite Cutting Machine Manufacturer
