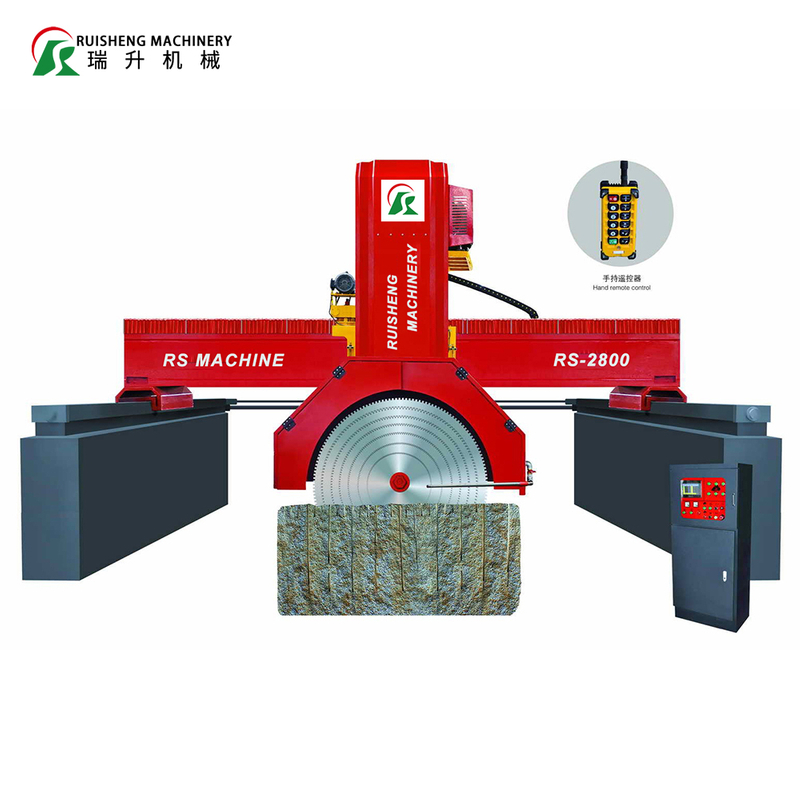

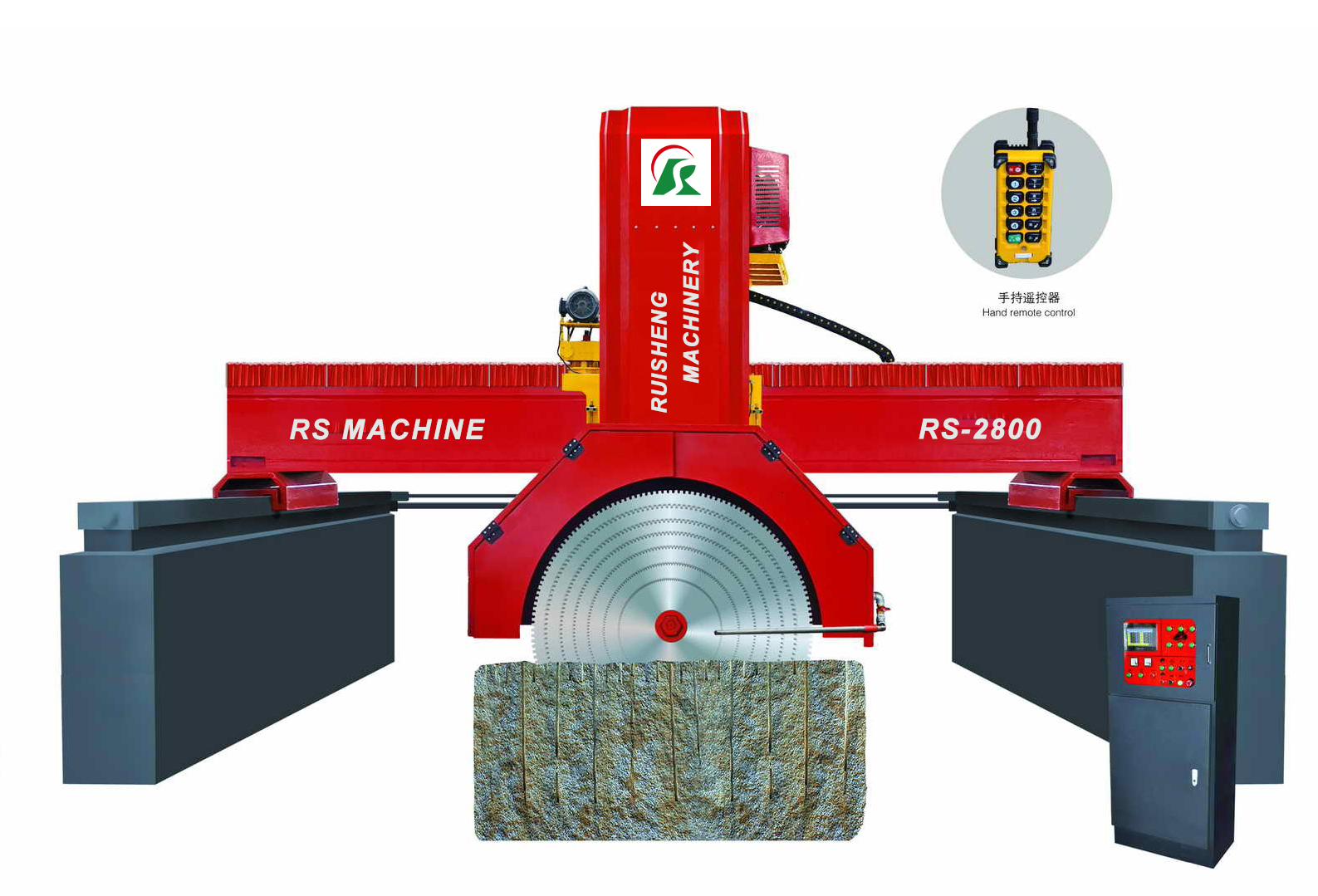

Ruisheng Bridge Cutting Machine for Processing Granite/Marble Block Into Slabs
20 years of experience in the manufacturing of Ruisheng Bridge Cutting Machine for Processing Granite/Marble Block Into Slabs, with customizable sizes and direct sales from manufacturers for high-quality and affordable products.
RS-2200/2500/2800 uses a PLC system and Human-machine interface, combined with an Ultra-high precision rotary encoder to slice, uses an inverter to control left-right feeding and adjusts the speed according to the stone material. It uses a hydraulic lifting system, and the forward-backward slicing uses high-precision screw nut driving, and automatic slicing, main spare parts adopt imported good-quality materials, The block can be placed on the ground directly and economize the worktable and its maintenance costs: The whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.
Note:360 rotating worktables can be selected if the customer requires

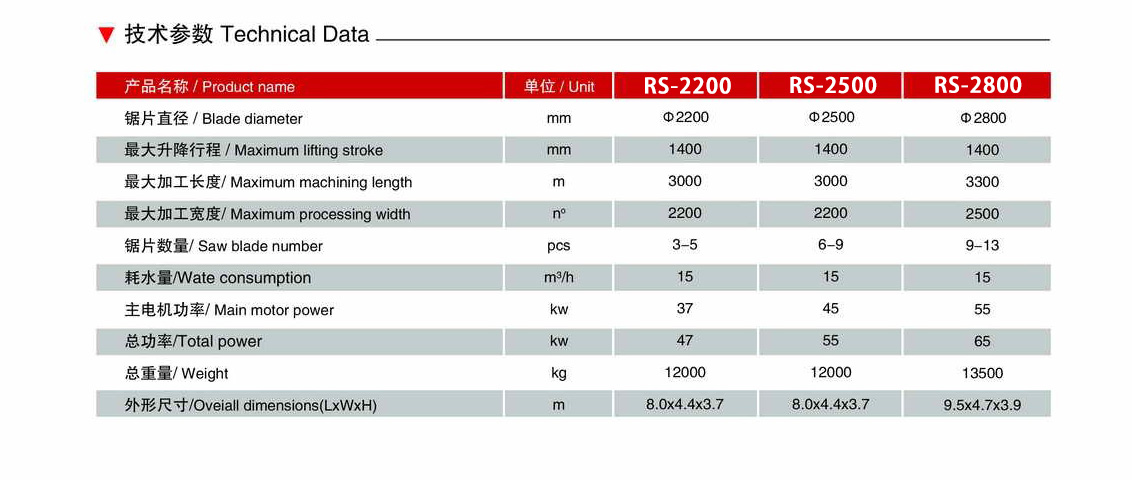

| Product name | Unit | WY-2200 | WY-2500 | WY-2800 |
| Blade diameter | mm | Φ2200 | Φ2500 | Φ2800 |
| Maximum lifting stroke | mm | 1400 | 1400 | 1400 |
| Maximum machining length | m | 3000 | 3000 | 3300 |
| Maximum processing width | ne | 2200 | 2200 | 2500 |
| Saw blade number | pcs | 3-5 | 6-9 | 9-13 |
| Wate consumption | m3/h | 15 | 15 | 15 |
| Main motor power | Kw | 37 | 45 | 55 |
| Total power | Kw | 47 | 55 | 65 |
| Weight | kg | 12000 | 12000 | 13500 |
| Oveiall dimensions(LxWxH) | m | 8.0x4.4x3.7 | 8.0x4.4x3.7 | 9.5x4.7x3.9 |
Ruisheng Bridge Cutting Machine for Processing Granite/Marble Block Into Slabs
FAQ:
Q: Are you a manufacturer or trading company?
A: We are one of the leading manufacturers in China.
Q: What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-30 days after the deposit is received, If urgent, it can be negotiated.
Q: What’s the warranty time?
A: One year, but technical support will be a lifetime.
Q: Can You Customize The Machine I Want?
A: ODM/OEM business partners will be warmly welcomed.
