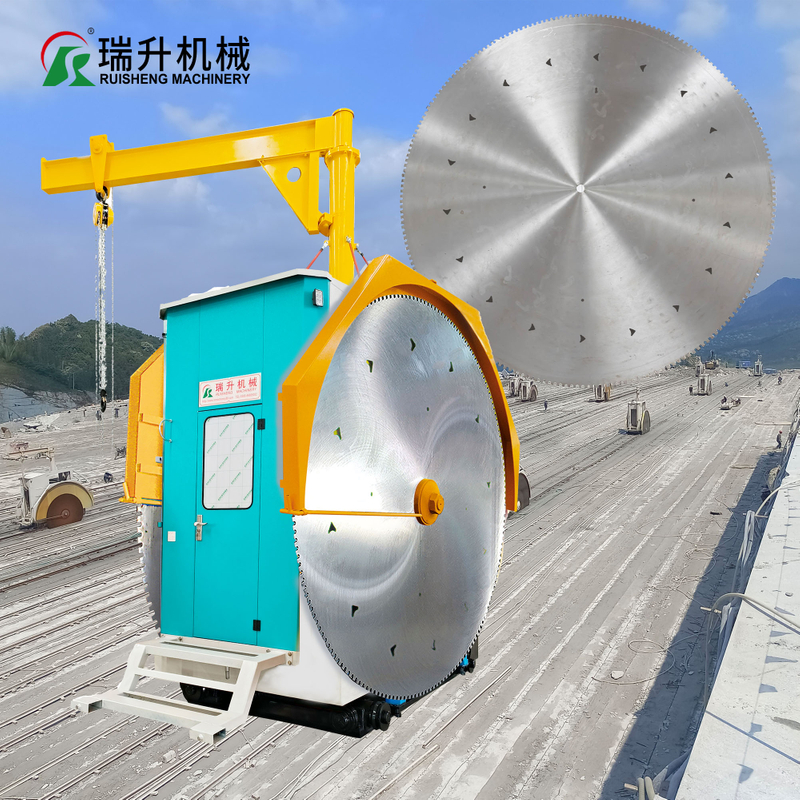

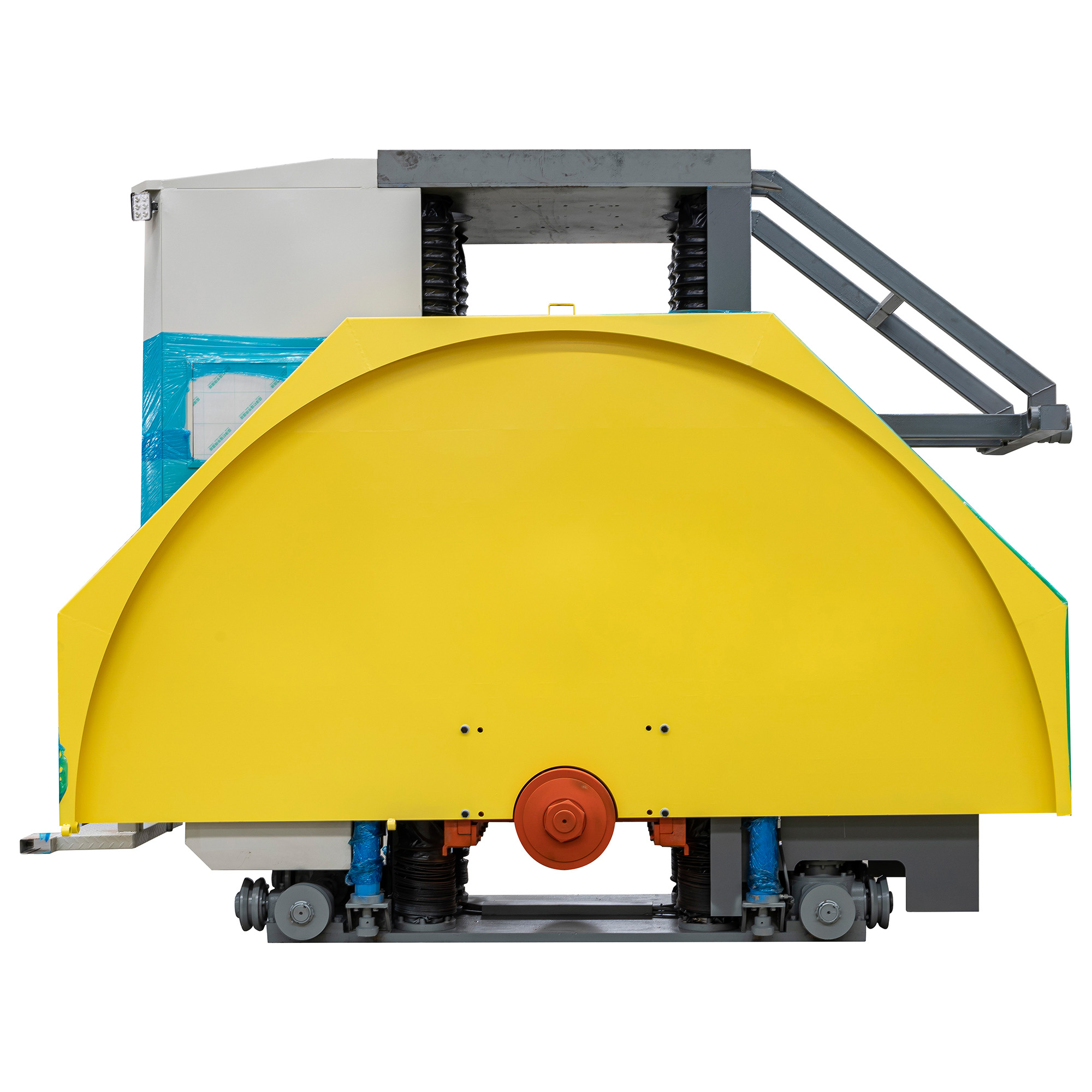

RUISHENG machinery is a China granite quarry machine manufacturer，Model size 3300mm/3600mm/3800mm/4200mm/4600mm/4800mm various models can meet the needs of different mining operations.
Granite mining machine price affordable，factory direct sales, quality assurance, worry-free after-sales.
| Product name | Unit | RS-1360/1960ZL/M | RS-1500/2100ZL/M | RS-1950/2550ZL/M | RS-2600/3200ZL/M |
| Diameter of driving wheel | mm | Φ3600 | Φ3800 | Φ4800 | Φ4800 |
| Cutting width | mm | 1360-1960 | 1500-2100 | 1950-2550 | 2600-3200 |
| Max cutting depth | mm | 1550 | 1650 | 2150 | 2150 |
| Main motor power | kw | 55 | 55 | 65 | 65 |
| Water consumption | m/n | 5 | 5 | 5 | 5 |
| Total power | kw | 131.2 | 131.2 | 137 | 137 |
| Dimension of external form | mm | 4080x1560x2600 | 4280x1700x2700 | 5210x2110x3370 | 5210x2760x3370 |
| Total weight | kg | 8000 | 8200 | 11500 | 13000 |
FAQ:
Q: What's The Max.thickness Can RSZL-3600 Machine Cut The Stone At Quarry?
A: 3000(diameter of blade)/2 -300mm(deductive parameter) = 1500mm
Q: How Depth Can The Double Blade Machine Cut Per Trip?
A: 150-200-250mm depending on the hardness of the stone cut.
Q: How Fast Can the RSZL-3600 Double Blade Machine Cut Along With The Rail?
A: 200m per day for marble, 150m per day for granite, based on cutting 20 hours daily.
Q: How Width Can The Double Blade Machine Cut?
A: The double blade can stretch out and cut 1360-3200mm wide depending on different types.
Q: How Many Stone Can Be Mined By One China granite quarry machine Per Month?
A: About 4500-5000 gross cbm per machine if work 15-20 days day and night.
Q: We Have A Stone Quarry. How Many stone mining machine Are Needed For Our Mining？
A: One machine per 3000 sqm working area is suggested for equipment.
Q: How Long Rails Should Be Equipped For The China double blade granite mining cutting machine?
A: 300-meter rails for one machine.
Q: How Many Blades Should Be Equipped For The double blade granite quarry cutting machine?
A: Two sets for one machine, or Three sets for two machines.
Q: Is It Easy To Operate?
A: A friendly English version manual or guide video shows how to use the machine. We offer training on how to install the machine and how to use the machine.
Q: How Many Pieces Of Blade Per Set?
A: 4 pieces, including double small blades of 2200-2400 mm diameter for initial cutting and taking track shape, and double big blades for further deeper cutting.
Q: How Long Can A Blade Work Without Changing The Diamond Segments (Blade Tips)?
A: For cutting granite at 1500mm depth, the blade should be changed after the machine walks about 400 meters. For cutting marble, should be changed after walking about 1000-2000 meters.
